Product Description

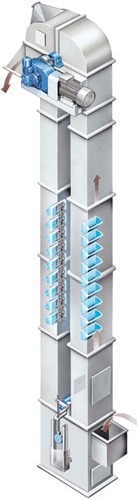

Bucket Elevator

Bucket elevators are developed to move bulk solids or flowing powders vertically. Bucket elevators utilize an endless chain or belt and have a range of buckets attached to it. Bulk material is scatter into an inlet hopper. Buckets or cups sculpt into the material and carry it up & over the head sprocket/pulley, and then throw the material out a discharge throat

It made of:

Buckets to contain the material

Gear Box and Electric Motor to drive the belt

A chain or belt to transport the buckets & transmit the pull

Accessories for filling the buckets or picking up the material, for obtaining the discharged material, for maintaining the belt tension and for enclosing & protecting the elevator.

Bucket elevators are not self-feeding, and are fed at a controlled amount. The buckets are commonly where the belt or chain path is steeply or vertical inclined in an individual plane. The buckets are returned back down to a tail pulley at the bottom.

We have capability to design and develop all kinds of elevators, with high or slow speed. It all depends up to the client's requirement, so we always pride to facilitate its esteemed patrons by maintaining their best level of accuracy standard as per their client's ultimate need.

There are four wide classifications of bucket elevators: centrifugal, positive, continuous and internal discharge. The most usually utilized are the centrifugal & continuous discharge elevators.
